NSE 7 - Secure Networking 7.6 Architect Exam Materials-Question 45 Discussion
Comment Image Comment Image Comment Image

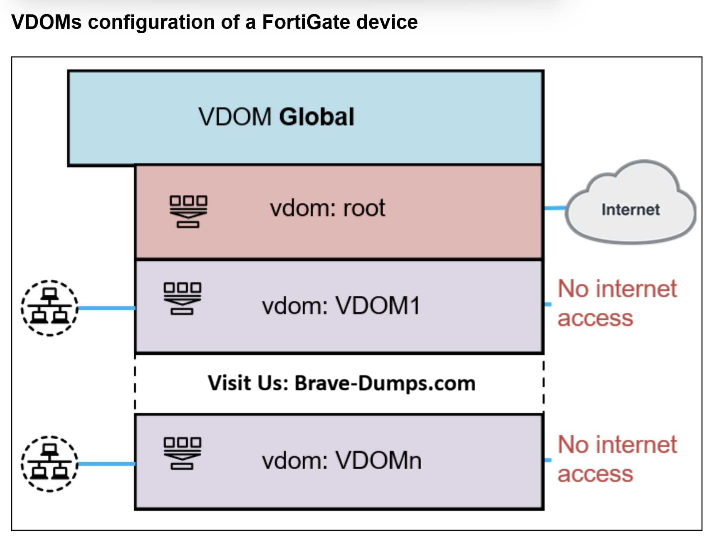

Refer to the exhibit. A FortiGate segmented into VDOMs is shown. You must ensure effective and accelerated internet access for all of the VDOMs in this enterprise network. How can you achieve this? (Choose one answer)

  • A. Create VLANs over network processing unit (NPU) vlinks.
  • B. Create VDOM links.
  • C. Connect a physical interface from each VDOM to the root VDOM.
  • D. Configure network processing unit (NPU) vlinks.
Correct Answer: A

Brave-Dump Clients Votes

D 66.67%
A 33.33%

Comments



Md Nasir Uddin 2026-08-24 07:30:07

Selected Answers: D


https://community.fortinet.com/fortigate-3/technical-tip-difference-and-understanding-between-npu-vdom-link-npu-vdom-link-with-vlan-and-vdom-link-108579

Anonymous User 2026-09-04 22:32:53

Selected Answers: D


npu vlink is highly recommended for high volume traffic, and keep main cpu free for UTM

Anonymous User 2026-09-07 13:14:56

Selected Answers: A


This is a tricky question, but asumming there are several VDOMs (because VDOMn instead of VDOM2 in the exhibit), it should use "VLAN over NPU VDOM Link" option.
