NSE 7 - Secure Networking 7.6 Architect Exam Materials-Question 54 Discussion
Comment Image Comment Image Comment Image

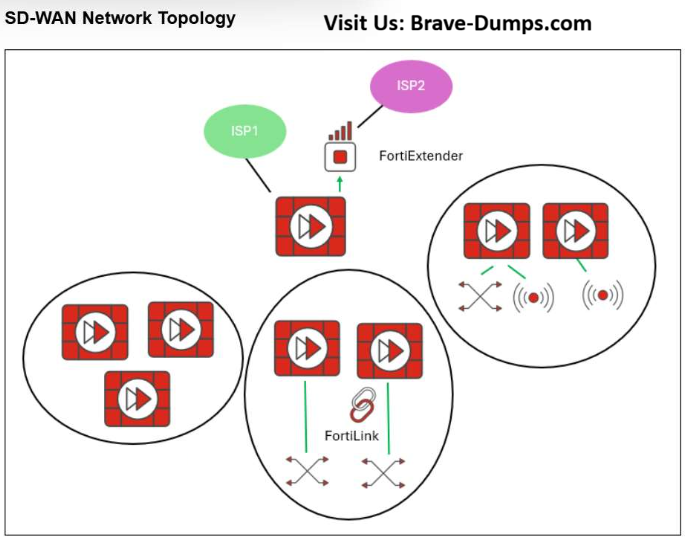

Refer to the exhibit. You want to configure SD-WAN on a network, as shown in the exhibit. The network contains many FortiGate devices. Some are used as next-generation firewalls (NGFW), and some are installed with extensions such as FortiSwitch, FortiAP, or FortiExtender. Which factors should you consider when planning your deployment? (Choose one answer)

  • A. You can build an SD-WAN topology that includes all devices. The hubs must be devices without extensions.
  • B. You should exclude the FortiGate devices with FortiLink connection from the SD-WAN topology.
  • C. You should build multiple SD-WAN topologies. Each topology should contain only one type of extension.
  • D. You can build an SD-WAN topology that includes all devices. The hubs can be FortiGate devices with FortiExtender.
Correct Answer: A

Brave-Dump Clients Votes

D 100%

Comments



Anonymous User 2026-07-29 09:26:44

Selected Answers: D


Shouldn't it D?
The option A is stating that hubs "MUST" devices without extensions(FortiSwitch/FortiAP/FortiExtender).
I don't find any evidence to study guide that stating if Fortigate can't perform as SD-WAN HUB if there's any extension.
