Guidelines

This is a lab item in which tasks will be performed on virtual devices.

1. Refer to the Tasks tab to view the tasks for this lab item.
2. Refer to the Topology tab to access the device console(s) and perform the tasks.
3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
4. All necessary preconfigurations have been applied.
5. Do not change the enable password or hostname for any device.
6. Save your configurations to NVRAM before moving to the next item.
7. Click Next at the bottom of the screen to submit this lab and move to the next question.
8. When Next is clicked, the lab closes and cannot be reopened.

Tasks

OSPF is preconfigured on all devices except R30. Configure R30 to complete these tasks.

Task 1:

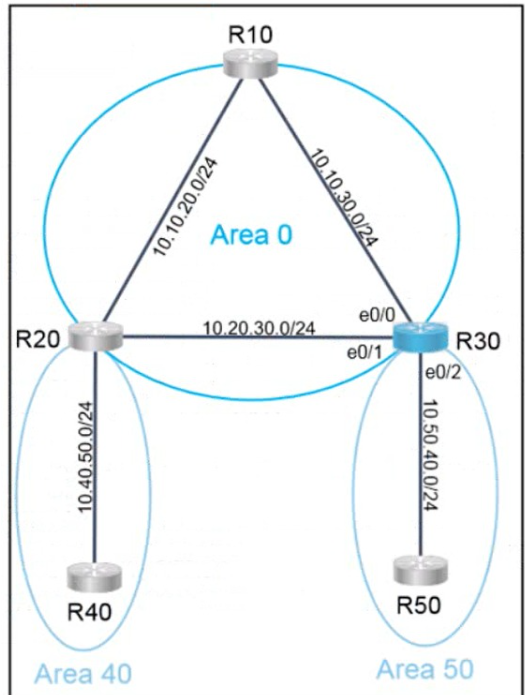

Configure OSPF according to the topology using these requirements:

• Use Process ID 30.
• Use Loopback0 for the Router ID.
• Advertise all networks into OSPF.
  • Do not use network statements under the OSPF process to accomplish this task.

Task 2:

Configure a /18 summary route for Area 50.







Answers

R30#EN
R30#CONFIG
R30(config)#router ospf 30

###In the command "router-id 30.30.30.30", "30.30.30.30" refers to the Loopback0 address of R30. This command assumes that the address is "30.30.30.30" and is therefore configured as "router-id 30.30.30.30". However, during the exam, you must use the command "show run int lo0" on R30 to verify the actual Loopback0 address, and modify "30.30.30.30" in the command to R30's actual Loopback0 address.

R30(config-router)#router-id 30.30.30.30
R30(config-router)#area 50 range 10.50.0.0 255.255.192.0
R30(config-router)#exit
R30(config)#int range lo0,e0/0-1
R30(config-if-range)#ip ospf 30 area 0
R30(config-if-range)#int e0/2
R30(config-if)#ip ospf 30 area 50
R30(config-if)#end
R30#w
