NSE 4 - FortiOS 7.6 Administrator Exam Materials-Question 12 Discussion
Comment Image Comment Image Comment Image

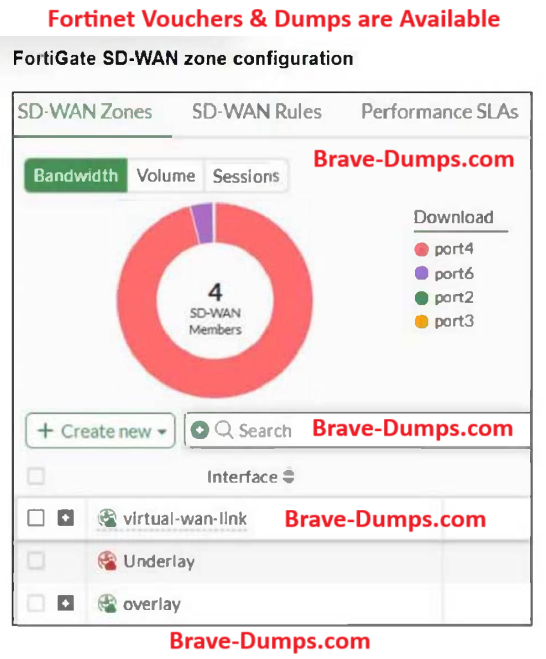

Refer to the exhibit, which shows an SD-WAN zone configuration on the FortiGate GUI. Based on the exhibit, which statement is true? (Choose one answer)

  • A. The Underlay zone is the zone by default.
  • B. The Underlay zone contains no member.
  • C. port2 and port3 are not assigned to a zone.
  • D. The virtual-wan-link and overlay zones can be deleted.
Correct Answer: B

Brave-Dump Clients Votes

B 85.71%
D 14.29%

Comments



chiras theodoros 2025-10-30 16:59:15

Selected Answers: D


D, as underlay zone can have All members failed or none active
  • Derrick Watson 2025-11-16 10:21:04
    Page 425 from course material states that the virtual-wan-link cannot be deleted. D is incorrect. The answer is B

Derrick Watson 2025-11-16 10:22:26

Selected Answers: B


B: Underlay zone does not have a plus icon, indicating there are no ports assigned to it.

Flo Dew 2025-12-01 16:51:06

Selected Answers: B


B

Anonymous User 2026-01-11 19:30:40

Selected Answers: B


When a SD-WAN zone interface has no members, it turns red. If you press the plus icons, the members would be shown. If there are members assigned to a zone (so it's green) these interfaces can't be deleted.

abdulrahman 2026-02-26 11:44:26

Selected Answers: B


100% B

Anonymous User 2026-06-01 00:53:54

Selected Answers: B


Study, page 435: The SD-WAN Zones page in the menu Network > SD-WAN, provides a synthetic view of the SD-WAN zones and members configuration. Note that zones with no member appear with a red icon. Next to zones with members is a + sign that you can click to display the members.

Anonymous User 2026-07-22 10:30:01

Selected Answers: B


In the exhibit, both virtual-wan-link and overlay zones have an expand icon (the small colored box next to the checkbox) indicating they contain member interfaces. The Underlay zone has no such expand icon, meaning it currently has no interfaces assigned to it — it's an empty zone.
