View all questions & answers for the FCSS – SD-WAN 7.6 Architect Exam Materials exam


Question 11 Discussion

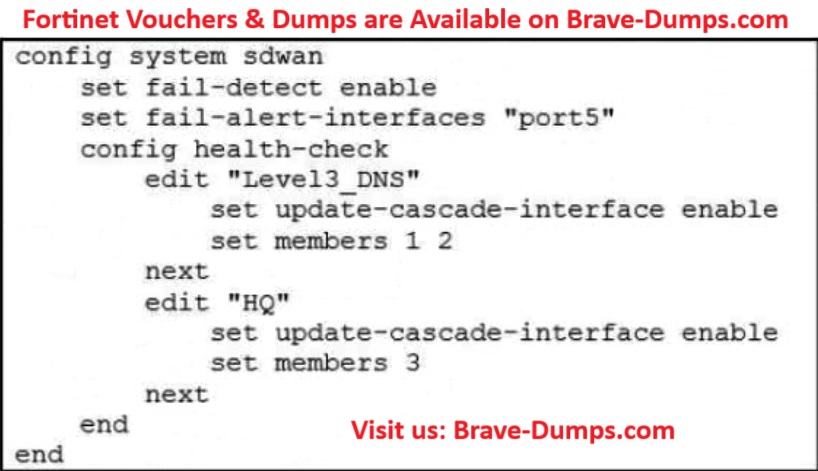

Which action will FortiGate take if it detects SD-WAN members as dead? (Choose one answer)

  • A. FortiGate bounces port5 after it detects all SD-WAN members as dead.
  • B. FortiGate sends alert messages through port5 when it detects all SD-WAN members as dead.
  • C. FortiGate brings down port5 after it detects all SD-WAN members as dead.
  • D. FortiGate fails over to the secondary device after it detects port5 as dead.
Correct Answer: C

Brave-Dump Clients Votes

C 66.67%
B 33.33%

Comments



Gavin Romario 2025-11-08 07:15:22

Selected Answers: B


https://community.fortinet.com/t5/FortiGate/Technical-Tip-Bring-other-interfaces-down-when-link-monitor/ta-p/190877
  • Brave-Dumps Admin 2025-11-08 12:45:09
    Cascade Interfaces Behavior: When all SD-WAN members are dead, FortiGate: ✅ Shuts down the alert interface (port5) to force traffic rerouting (e.g., to a 5G backup). ❌ Does not just send alerts (Option B is incorrect). When at least one member is alive, FortiGate: Brings port5 back up. Be careful, all of the members in the borth of the health checks should go down to bring the port5 down. Level3_DNS (1,2). HQ (3) port5 Status Alive Alive Up Dead (1,2 down) Alive Up Alive Dead (3 down) Up (All dead) Dead Dead Down https://community.fortinet.com/t5/FortiGate/Technical-Tip-Functionality-of-set-update-cascade-interface/ta-p/193015

Brave-Dumps Admin 2025-11-08 12:45:23

Selected Answers: C


Cascade Interfaces Behavior:

When all SD-WAN members are dead, FortiGate:
✅ Shuts down the alert interface (port5) to force traffic rerouting (e.g., to a 5G backup).
❌ Does not just send alerts (Option B is incorrect).

When at least one member is alive, FortiGate: Brings port5 back up.

Be careful, all of the members in the borth of the health checks should go down to bring the port5 down.


Level3_DNS (1,2). HQ (3) port5 Status
Alive Alive Up
Dead (1,2 down) Alive Up
Alive Dead (3 down) Up
(All dead) Dead Dead Down

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Functionality-of-set-update-cascade-interface/ta-p/193015

Anonymous User 2025-12-30 13:06:10

Selected Answers: C


C is the correct one
