BIG-IP Administration Data Plane Configuration (F5CAB3)-Question 20 Discussion
Comment Image Comment Image Comment Image

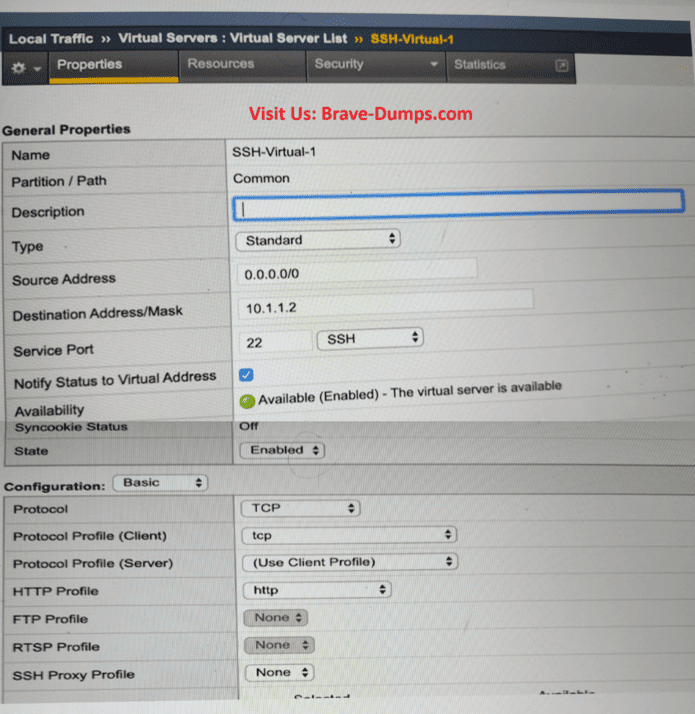

Refer to the exhibit: A BIG-IP Administrator creates a new Virtual Server to load balance SSH traffic. Users are unable to log on to the servers. What should the BIG-IP Administrator do to resolve the issue? (Choose one answer)

  • A. Set Destination Address Mask to 0.0.0.0/0
  • B. Set Protocol to UDP
  • C. Set HTTP Profile to None
  • D. Set Source Address to 10.1.1.2
Correct Answer: C

Brave-Dump Clients Votes

C 100%

Comments



Anonymous User 2026-10-21 14:51:28

Selected Answers: C


The exhibit showed the virtual server SSH-Virtual-1 on port 22 with the HTTP profile set to "http". That profile makes BIG-IP parse the traffic as HTTP. SSH is not HTTP, so the SSH handshake doesn't match what the profile expects, and the connection fails or is reset. Setting the HTTP profile to None lets BIG-IP pass the SSH traffic through as plain TCP.
