BIG-IP Administration Support and Troubleshooting (F5CAB5)-Question 37 Discussion
Comment Image Comment Image Comment Image

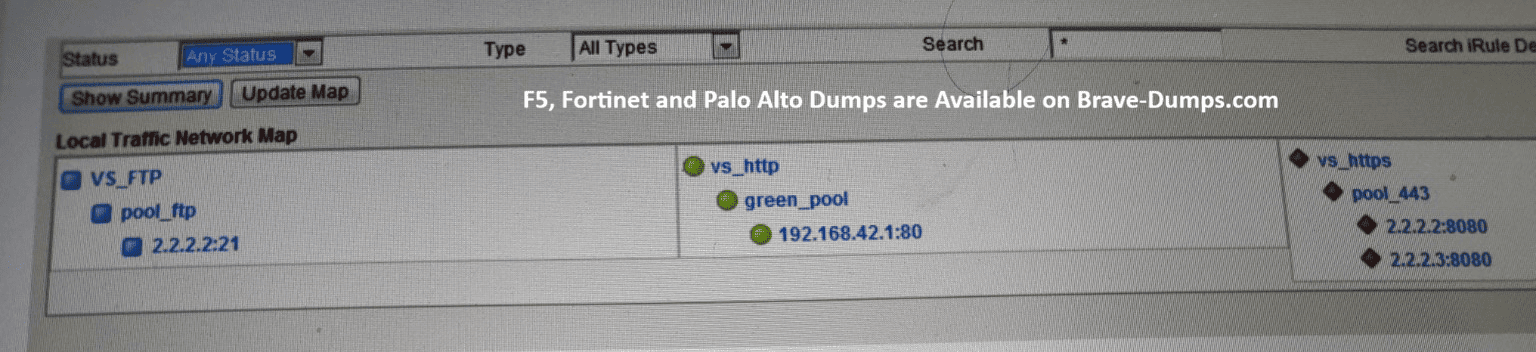

How many nodes are represented on the network map shown? (Choose one answer)

  • A. Four
  • B. Three
  • C. One
  • D. Two
Correct Answer: B

Brave-Dump Clients Votes

A 100%

Comments



Anonymous User 2026-07-01 23:07:42

Selected Answers: A


A node in an F5 Network Map is the actual server endpoint (IP:port), not the pool or virtual server.

From the map:

VS_FTP → pool_ftp → 2.2.2.2:21 → 1 node

vs_http → green_pool → 192.168.42.1:80 → 1 node

vs_https → pool_443 → 2.2.2.2:8080 and 2.2.2.3:8080 → 2 nodes
