View all questions & answers for the NSE 6 – SD-WAN 7.6 Enterprise Administrator Exam Materials exam


Question 57 Discussion

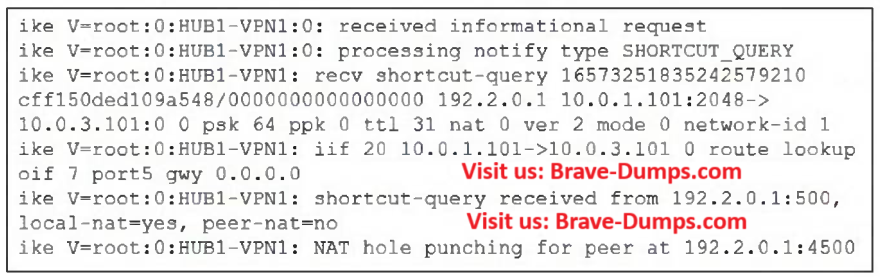

Refer to the exhibit. Which statement correctly describes the role of the ADVPN device in handling traffic? (Choose one answer)

  • A. This device is a spoke that has received a direct shortcut query from a remote spoke.
  • B. This device is a hub, and two spokes, 192.2.0.1 and 10.0.3.101, established a shortcut.
  • C. This device is a hub that has received a shortcut query from a spoke and has forwarded it to another spoke.
  • D. This device is a spoke that has received a shortcut query from a remote hub.
Correct Answer: D

Brave-Dump Clients Votes

D 50%
A 50%

Comments



Anonymous User 2026-01-30 07:46:22

Selected Answers: D


. Spoke2-spoke2 receives shortcut query from hub, and then sends shortcut reply to hub:
ike V=root:0:HUB1-VPN1:13: received informational request
ike V=root:0:HUB1-VPN1:13: processing notify type SHORTCUT_QUERY
ike V-root:0:HUB1-VPN1: recv shortcut-query 9828560659066150666 5alb8a251891a87b/0000000000000000 192.2.0.1
10.0.1.101:2048->10.0.2.101:0 0 psk 64 ppk 0 ttl 31 nat 0 ver 2 mode 0 network-id 1
ike V=root:0:HUB1-VPN1: iif 20 10.0.1.101->10.0.2.101 0 route lookup oif 7 port5 gwy 0.0.0.0
ike v-root:0:HUB1-VPN1; shortcut-query received from 192.2.0.1:500, local-nat-no, peer-nat-no
ike V=root:0:HUB1-VPN1: send shortcut-reply 9828560659066150666 5a1b8a251891a87b/8255ccf4af12fb8f
203.0.113.1 to 10.0.1.101 0 psk 64 ppk 0 ver 2 mode 0 network-id 1/1

Page: 225 (SD-WAN 7.6 Enterprise Administrator Study Guide)

Anonymous User 2026-02-12 16:56:20

Selected Answers: A


At this stage, two spoke is receiving the query from remoke spoke directly. shall rely on the exhibition to answer. The study guide shows a different stage. I have no time to verify in the lab, wish someone could verify.
