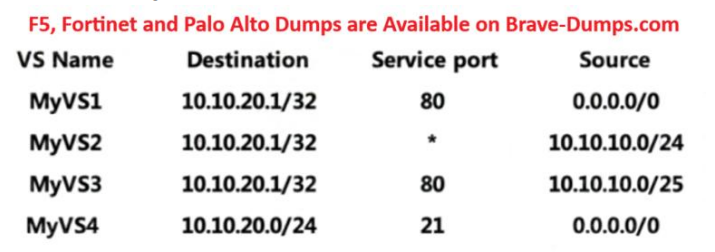

A virtual server configuration for traffic destined to a server is as shown: HTTP traffic is destined to the 10.10.20.1 server from the source of 10.10.10.129. Based on precedence, which virtual server accepts this traffic? (Choose one answer)

  • A. MyVS1
  • B. MyVS3
  • C. MyVS2
  • D. MyVS4
Correct Answer: C

Brave-Dump Clients Votes

C 50%
A 25%
B 25%

Comments



Anonymous User 2026-06-03 07:02:16

Selected Answers: A


Destination IP > Service Port > Source Address.

Anonymous User 2026-06-19 13:19:37

Selected Answers: B


Should be MyVS3, there is a tie with VS1 source address makes MyVS3 best choice

Giovanni Altitoro 2026-07-08 11:47:45

Selected Answers: C


https://my.f5.com/manage/s/article/K14800
K14800: Order of precedence for virtual server matching (11.3.0 and later)
Starting in BIG-IP 11.3.0, you can configure source addresses from which virtual servers accept traffic. The BIG-IP system uses the destination address, source address, and service port configuration to determine the order of precedence applied to new inbound connections. When a connection matches multiple virtual servers, the BIG-IP system uses an algorithm that places virtual server precedence in the following order:

Destination address
Source address
Service port

Anonymous User 2026-09-04 21:09:06

Selected Answers: C


C
