Tasks

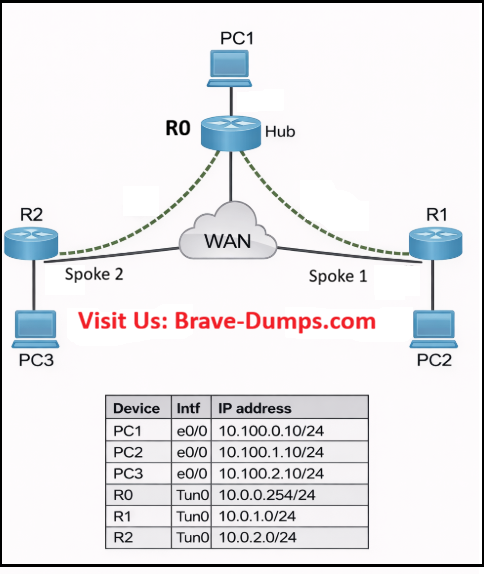

Configure IPSec security policy on tunnel interfaces to ensure data confidentiality and integrity where mGRE tunnels are up and running between HUB and SPOKE routers.

1. Configure the ISAKMP policy parameters with the following attributes:
   AES256
   SHA256
   Group2
   lifetime 86400
2. Ensure that GRE IP Header should be encrypted inside the IPSec packet. Verify IPSec security association and ISAKMP encrypted key. Use ISAKMP key "abc123".
3. Configure a flexible ISAKMP Policy on the HUB to add peers that have the dynamic IP addresses where SPOKES must add HUB IP static entry using an encrypted key. Use a single command to configure it. Use IPSec phase-2 transform-set name as 'T-SET' and IPSec Profile name as 'IPSEC-PROFILE'.

ANSWER



---

A: R0:



R0>en
R0#config t
R0(config)#crypto isakmp policy 10
R0(config-isakmp)#encr aes 256
R0(config-isakmp)#hash sha256
R0(config-isakmp)#authentication pre-share
R0(config-isakmp)#group 2
R0(config-isakmp)#lifetime 86400
R0(config-isakmp)#exit
R0(config)#crypto isakmp key abc123 address 0.0.0.0
R0(config)#crypto ipsec transform-set T-SET esp-aes 256 esp-sha256-hmac
R0(cfg-crypto-trans)#mode tunnel
R0(cfg-crypto-trans)#exit
R0(config)#crypto ipsec profile IPSEC-PROFILE
R0(ipsec-profile)#set transform-set T-SET
R0(ipsec-profile)#exit
R0(config)#interface Tunnel0
R0(config-if)#tunnel protection ipsec profile IPSEC-PROFILE
R0(config-if)#ip nhrp map multicast dynamic
R0(config-if)#end
R0#wr



---

R1/R2:



Router>en
Router#config t
Router(config)#crypto isakmp policy 10
Router(config-isakmp)#encr aes 256
Router(config-isakmp)#hash sha256
Router(config-isakmp)#authentication pre-share
Router(config-isakmp)#group 2
Router(config-isakmp)#lifetime 86400
Router(config-isakmp)#exit
Router(config)#crypto isakmp key abc123 address 10.0.0.254
Router(config)#crypto ipsec transform-set T-SET esp-aes 256 esp-sha256-hmac
Router(cfg-crypto-trans)#mode tunnel
Router(cfg-crypto-trans)#exit
Router(config)#crypto ipsec profile IPSEC-PROFILE
Router(ipsec-profile)#set transform-set T-SET
Router(ipsec-profile)#exit
Router(config)#interface Tunnel0
Router(config-if)#tunnel protection ipsec profile IPSEC-PROFILE
Router(config-if)#end
Router#wr
