Guidelines
This is a lab item in which tasks will be performed on virtual devices.

1. Refer to the Tasks tab to view the tasks for this lab item.
2. Refer to the Topology tab to access the device console(s) and perform the tasks.
3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
4. All necessary preconfigurations have been applied.
5. Do not change the enable password or hostname for any device.
6. Save your configurations to NVRAM before moving to the next item.
7. Click Next at the bottom of the screen to submit this lab and move to the next question.
8. When Next is clicked, the lab closes and cannot be reopened.

---

Tasks
Complete the tasks below:

Task 1:

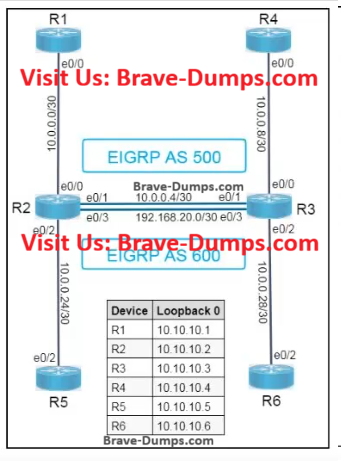

Use the predefined Sales and Admin VRFs (interfaces configured) to complete the configurations on R2 and R3 using these requirements:

1. Use EIGRP process 10
2. Do not use MPLS
3. The Sales VRF resides in AS 500
4. The Admin VRF resides in AS 600
5. R1 and R4 should advertise and ping Loopback0 through Sales VRF.

---

Task 2:
There is packet loss when R3 pings R6's Loopback0 in VRF Admin. Resolve the issue and confirm these facts:

1. R3 and R6 must form an EIGRP neighbor relationship under AS600
2. R3 must be able to receive all routes from R5 and R6 in VRF Admin
3. R3 must be able to ping Loopback 0 prefixes of R5 and R6 in VRF Admin
4. R5 and R6 must be able to ping each others Loopback 0s without configuring VRF.

Note:
Do not configure VRFs on R1, R4, R5, and R6. Disable automatic summarization in EIGRP on all routers.

ANSWER

On R1:

enable
configure terminal
router eigrp 500
 network 10.0.0.0 0.0.0.3
 network 10.10.10.1 0.0.0.0
 no auto-summary
end
write memory

On R2:



enable
configure terminal
router eigrp 10
 address-family ipv4 vrf Sales autonomous-system 500
  network 10.0.0.0 0.0.0.3
  network 10.0.0.4 0.0.0.3
  no auto-summary
 exit-address-family
 address-family ipv4 vrf Admin autonomous-system 600
  network 10.0.0.24 0.0.0.3
  network 192.168.20.0 0.0.0.3
  no auto-summary
 exit-address-family
end
write memory



---

R3:



enable
configure terminal
router eigrp 10
 address-family ipv4 vrf Sales autonomous-system 500
  network 10.0.0.4 0.0.0.3
  network 10.0.0.8 0.0.0.3
  no auto-summary
 exit-address-family
 address-family ipv4 vrf Admin autonomous-system 600
  network 192.168.20.0 0.0.0.3
  network 10.0.0.28 0.0.0.3
  no auto-summary
 exit-address-family
end
write memory



---

On R4:
enable
configure terminal
router eigrp 500
 network 10.0.0.8 0.0.0.3
 network 10.10.10.4 0.0.0.0
 no auto-summary
end
write memory



R6:

enable
configure terminal
no router eigrp 500
router eigrp 600
 network 10.0.0.28 0.0.0.3
 network 10.10.10.6 0.0.0.0
 no auto-summary
end
write memory



R5:



enable
configure terminal
router eigrp 600
 network 10.0.0.24 0.0.0.3
 network 10.10.10.5 0.0.0.0
 no auto-summary
end
write memory
