Question #21
Question #22
Which three characteristics apply to provisioning templates available on FortiManager? (Choose three answers)
- A. You cannot apply a system template and CLI template to the same FortiGate device.
- B. A CLI template can be of type CLI script or Perl script.
- C. A CLI template group can contain CLI templates of both types.
- D. A template group can include a system template and an SD-WAN template.
- E. CLI templates are applied in order, from top to bottom.
Question #23

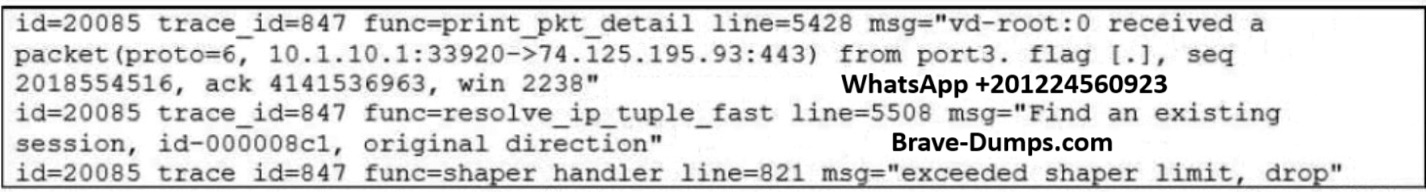

Refer to the exhibit.
Which conclusion about the packet debug flow output is correct?
(Choose one answer)
- A. The original traffic exceeded the maximum packets per second of the outgoing interface, and the packet was dropped.
- B. The reply traffic exceeded the maximum bandwidth configured in the traffic shaper, and the packet was dropped.
- C. The original traffic exceeded the maximum bandwidth of the outgoing interface, and the packet was dropped.
- D. The original traffic exceeded the maximum bandwidth configured in the traffic shaper, and the packet was dropped.
Question #24
Which two statements about SLA targets and SD-WAN rules are true? (Choose two answers)
- A. SD-WAN rules use SLA targets to check if the preferred members meet the SLA requirements.
- B. Member metrics are measured only if an SLA target is configured.
- C. When configuring an SD-WAN rule, you can select multiple SLA targets of the same performance SLA.
- D. SLA targets are used only by SD-WAN rules that are configured with Lowest Cost (SLA) or Maximize Bandwidth (SLA) as strategy.
Question #25

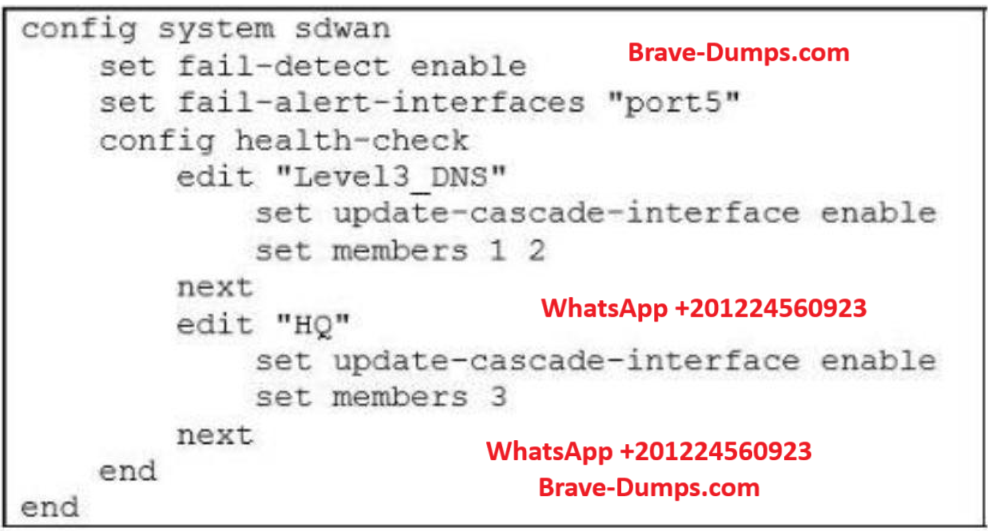

Refer to the exhibit.
Based on the exhibit which action does FortiGate take?
(Choose one answer)
- A. FortiGate brings down port5 after it detects all SD-WAN members as dead.
- B. FortiGate brings up port5 after it detects all SD-WAN members as alive.
- C. FortiGate bounces port5 after it detects all SD-WAN members as dead.
- D. FortiGate fails over to the secondary device after it detects all SD-WAN members as dead.
Question #26

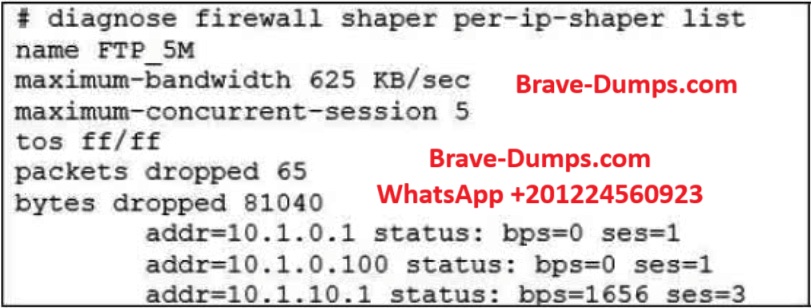

Refer to the exhibit.
Which are two expected behaviors of the traffic that matches the traffic shaper?
(Choose two answers)
- A. The number of simultaneous connections among all source IP addresses cannot exceed five connections.
- B. The traffic shaper limits the combined bandwidth of all connections to a maximum of 5 MB/sec.
- C. The number of simultaneous connections allowed for each source IP address cannot exceed five connections.
- D. The traffic shaper limits the bandwidth of each source IP address to a maximum of 625 KB/sec.
Question #27

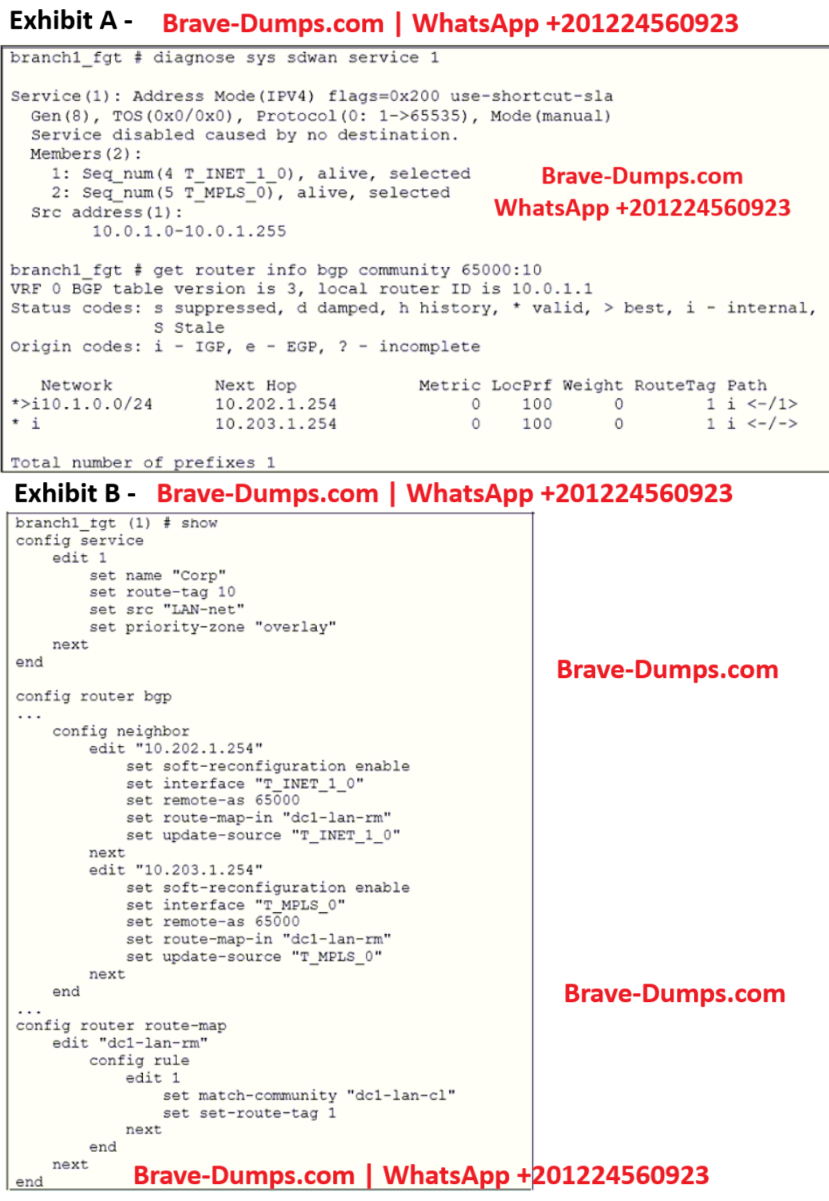

Refer to the exhibits.
Exhibit A shows the SD-WAN rule status and the learned BGP routes with community 65000:10. Exhibit B shows the SD-WAN rule configuration, the BGP neighbor configuration, and the route map configuration.
The administrator wants to steer corporate traffic using route tags in the SD- WAN rule ID 1. However, the administrator observes that the corporate traffic does not match the SD-WAN rule ID 1.
Based on the exhibits, which configuration change is required to fix the issue?
(Choose one answer)
- A. In the dc1-lan-rm route map configuration, set set-route-tag to 10.
- B. In SD-WAN rule ID 1, change the destination to use ISDB entries.
- C. In the dc1-lan-rm route map configuration, unset match-community.
- D. In the BGP neighbor configuration, apply the route map dc1-lan-rm in the outbound direction.
Question #28

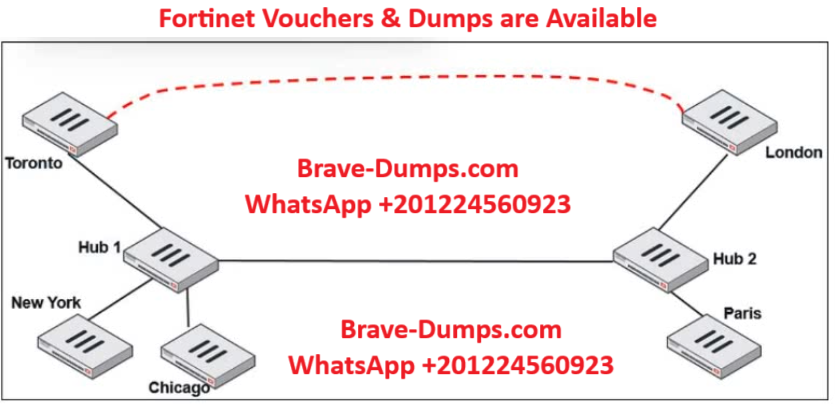

Refer to the exhibit.
Two hub-and-spoke groups are connected through a site-to-site IPsec VPN between Hub 1 and Hub 2.
Which two configuration settings are required for Toronto and London spokes to establish an ADVPN shortcut?
(Choose two answers)
- A. On the hubs, net-device must be enabled on all IPsec VPNs.
- B. auto-discovery-forwarder must be enabled on all IPsec VPNs.
- C. On the spokes, auto-discovery-receiver must be enabled on the IPsec VPN to the hub.
- D. On the hubs, auto-discovery-sender must be enabled on the IPsec VPNs to spokes.
Question #29
Which CLI command do you use to perform real-time troubleshooting for ADVPN negotiation? (Choose one answer)
- A. get router info routing-table all
- B. get ipsec tunnel list
- C. diagnose vpn tunnel list
- D. diagnose debug application ike
Question #30
Refer to the exhibit.
Based on the exhibit, which two actions does FortiGate perform on sessions after a firewall policy change?
(Choose two answers)
- A. FortiGate terminates the old sessions.
- B. FortiGate evaluates new sessions.
- C. FortiGate does not change existing sessions.
- D. FortiGate flushes all sessions.

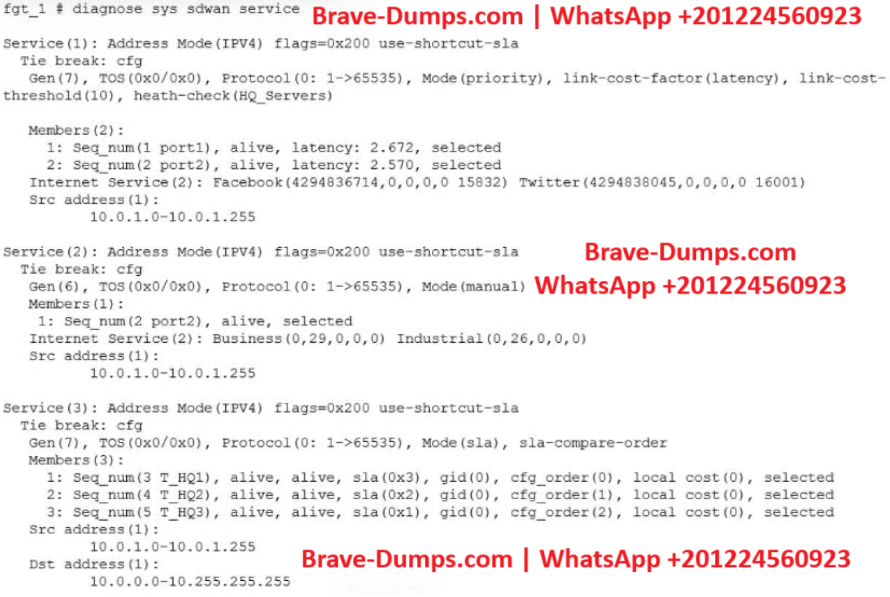

Refer to the exhibit.
The exhibit shows output of the command diagnose sys sdwan service collected on a FortiGate device.
The administrator wants to know through which interface FortiGate will steer the traffic from local users on subnet 10.0.1.0/255.255.255.192 and with a destination of the business application Salesforce located on HQ servers 10.0.0.1.
Based on the exhibits, which two statements are correct? (Choose two answers)
